36*8MP(4K)



Q:What is H.265+ Compression?



A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.



Q:How to  use face detection function?




A:It is work with AI Camera ,and click link for see operation video, link in description.(if the nvr not have the face detection function,please upgrade to newest version)




Q:Is it support other brand IP camera?



A:This nvr have NETIP protocol (XM:Xmeye and ICsee System ),onvif protocol and so on...,so if your IP camera,wifi camera ,PTZ IP camera is Tvpsii brand ,XM brand and other onvif brand ip camera,it work well.














Feature:

  • Support HDMI output VGA HD output;

  • Support ONVIF;access third party;

  • Support web,CMS,center platform management software MYEYE,provide SDK development;

  • Support multiple cloud technology,network penetration,alarm information pushed to your phone and other functions;

  • Support multiple network services (support DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,IP searches,Alarm Center,etc.);

36CH:



Model

 TSL-36CHX476 4K 2HDD

System

Main processor

NT98332

Operating System

Embedded Linux

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Interface

Operator interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

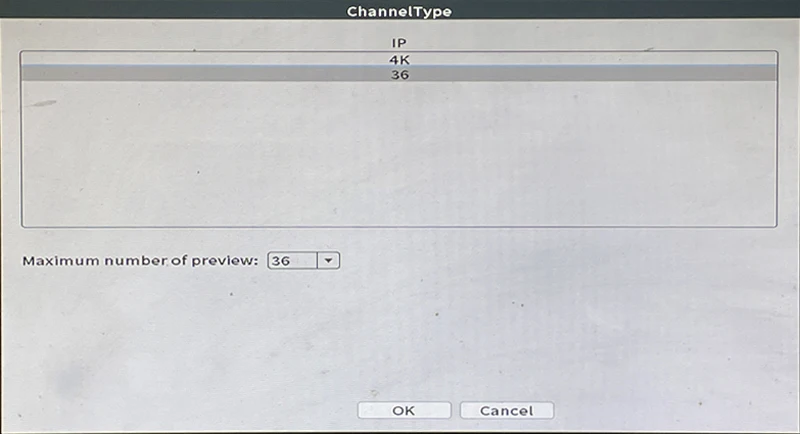

1/2/4/6/8/9/16/25/36

Video

Video input (IP)

36*4K

Video compression

H.265AI/H.265+(compatible H.265/H.264)

Display quality

Max:4K

Playback quality

4K/5M/4M/3M/1080P

VR

Unsupport

Motion detection

Support(depend on camera)

Audio

Audio compression

G.711A

Intercom

support

Record

&

playback

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Local payback

4K(1+1)/5M(3+1)/4M(4+1)/3M(5+1)1080P(8+2)

Search mode

Search by Time/Calendar/Event/Channel/Face

Record storage

HDD,Network,Cloud

Backup mode

Network backup, USB hard disk, USB burner, SATA burner

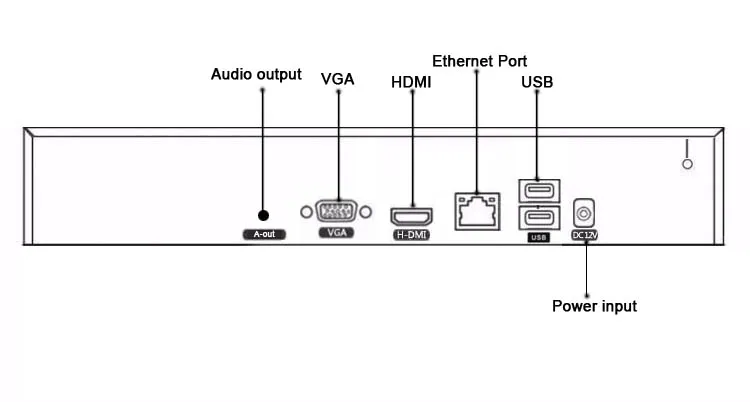

External interface

Video output

1ch VGA,1ch HDMI HD output

Audio I/O

1/1(3.5MM)

Alarm I/O

0/0

Network interface

1*RJ45 10M/100M/1000MAdaptive Ethernet port

USB interface

2*USB2.0 ports

HDD

2 SATA(Up to 14TB for each disk)

ESATA

No

Serial interface

No

Other

ONVIF

Support

Power supply

12V/5A

Power Consumption

<10W(Without HDD)

Work environment

Temperature:0℃－55℃, Humidity:10%－90%RH , Atm:86kpa－106kp

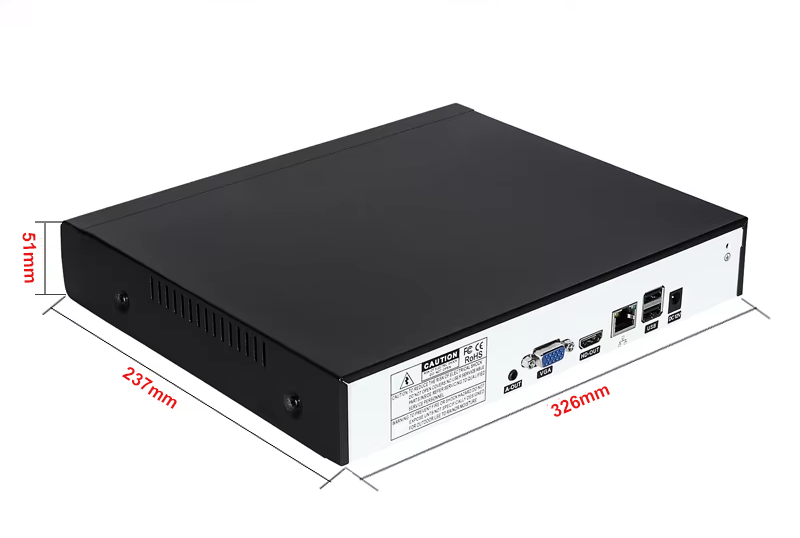

Dimension

326mm*237mm*51mm

Weight

A total of about 1.45kg





Our Surveillance Video Recorder  NVR have heat sink,metal material (long life),remote control,3G(4G)function and so on, quality assurance.
